A complete camper van's worth of electrics based on the most popular layouts for camper van wiring in 2025. We've used our 13 years experience to put together some highly popular starter packs containing a complete set of wiring to go from a panel van to a camper van in lots of layouts and component combinations. Explore this kit through the features and details below. Each kit covers mains hook up, smart alternator DC to DC charging, a battery, a lighting setup and more.

Cables and looms cut to fit

A fully tailored, easy-to-install electrical kit for powering your camper or race van with both 12V and 240V systems.

Made for Your Setup – Cables are cut to fit your exact layout, ensuring a hassle-free installation.
Dual Charging System – Charges your leisure battery from both mains hook-up and split charging while driving.
Mains consumer Unit Pre-Wired for Convenience – Just specify your socket locations, and we’ll wire it for you.

Pre-Made 12V Wiring Looms

Each kit is made to match your camper’s layout.

Pre-Terminated & Labelled – Each loom is stripped, colour-coded, and heat-shrunk for easy installation.
Correct Wire Thickness for Safety – Designed using voltage drop and current capacity calculations for optimal performance.
Connected and Ready - Features our classic 6-switch control panel for operating your appliances and USB charging

AGM leisure battery

A compact and powerful AGM leisure battery designed for efficient energy storage in campervans.

Up to 4 days of reliable power running this setup. **
A compact and powerful AGM leisure battery designed for efficient energy storage in campervans.
3-Year Warranty Included – Peace of mind with long-term reliability.

Victron Orion DC to DC charger

Charge your leisure battery from the engine whilst driving

Smart Alternator Flexibility– Designed for Euro 6 engines, but works just as well on Euro 5 or older.
Supports Lithium & AGM Batteries

185W Rigid Solar Panel & Cabling Kit

185W of reliable rigid solar power to extend your time away from campsites

Summer charge estimate of 359W per day should give 90% of your daily use *
Winter charge estimate of 111W per day should give 30% of your daily use *
Off-Grid Power – Harness solar energy to keep your leisure battery charged, even when stationary.

Easy Installation:
With labelled wires and comprehensive fitting instructions, installing your campervan’s electrical system is straightforward and hassle-free.

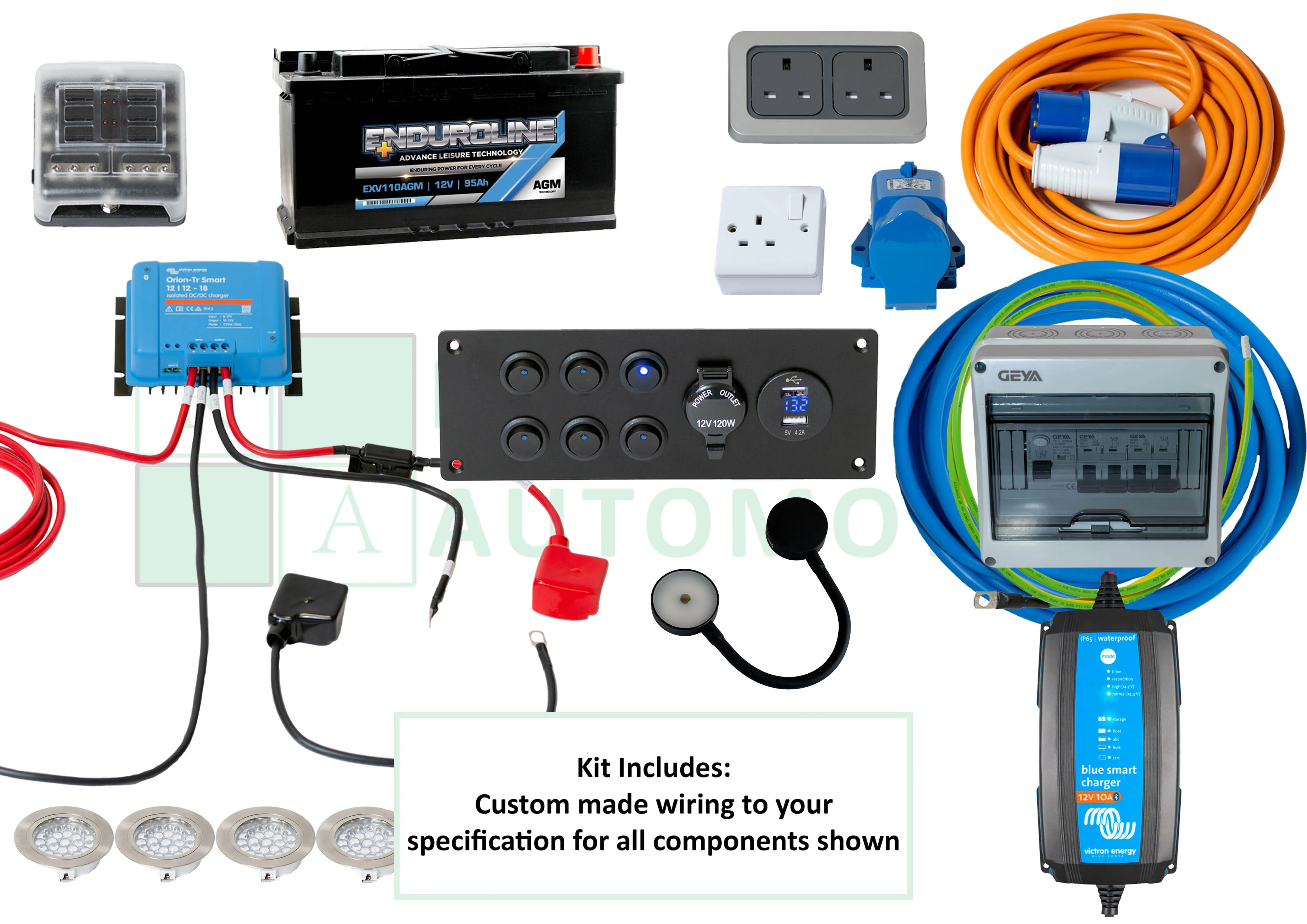

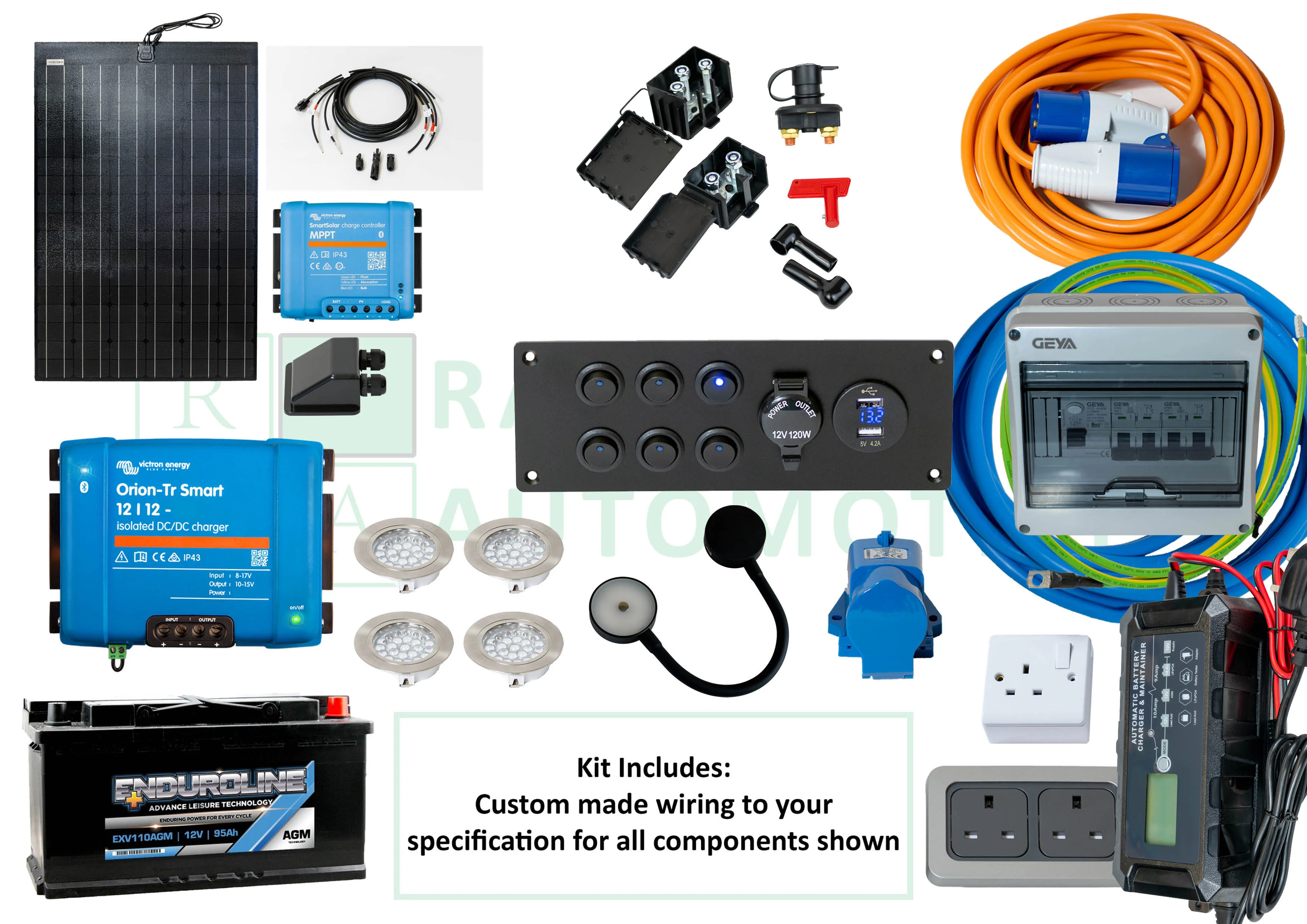

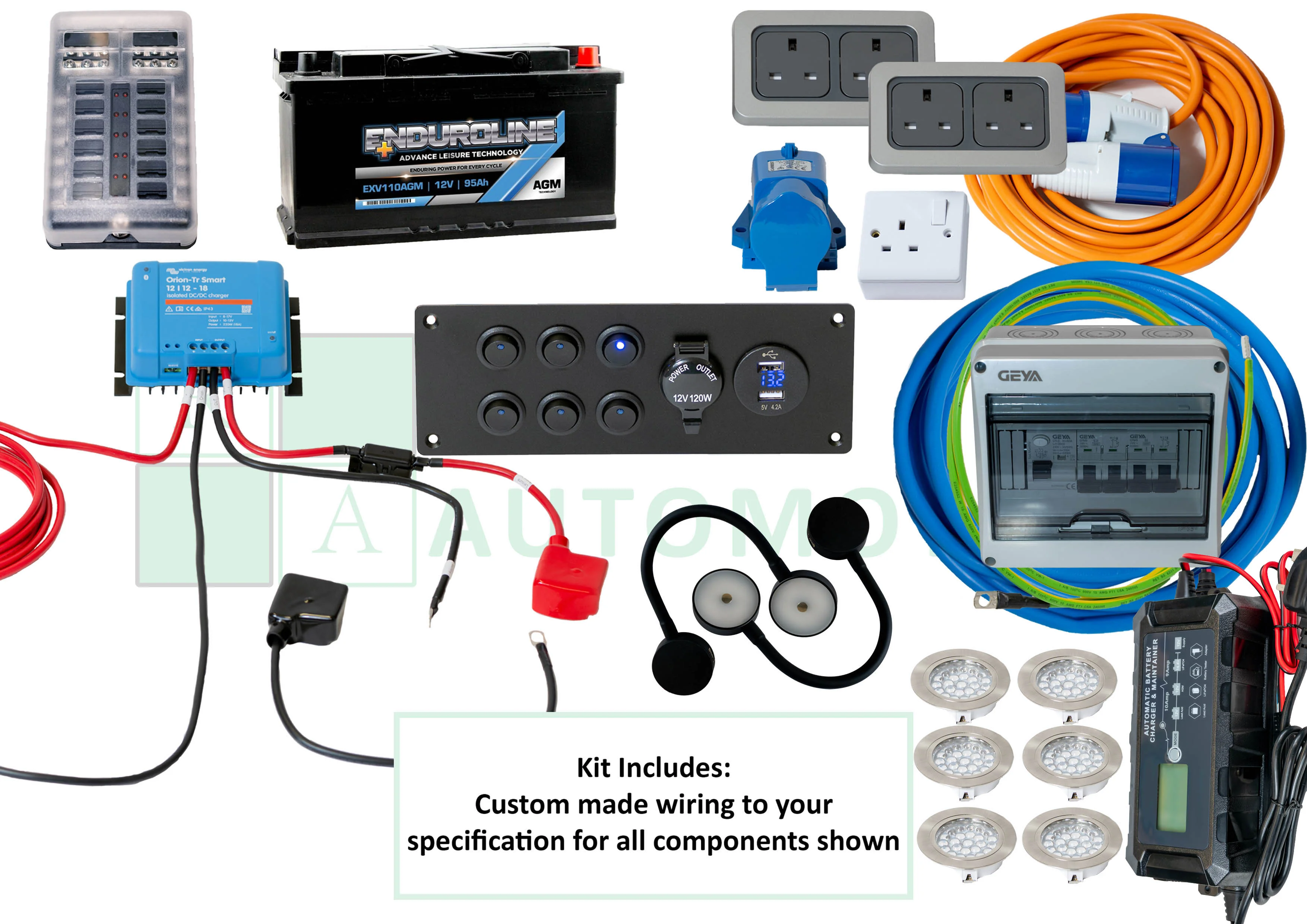

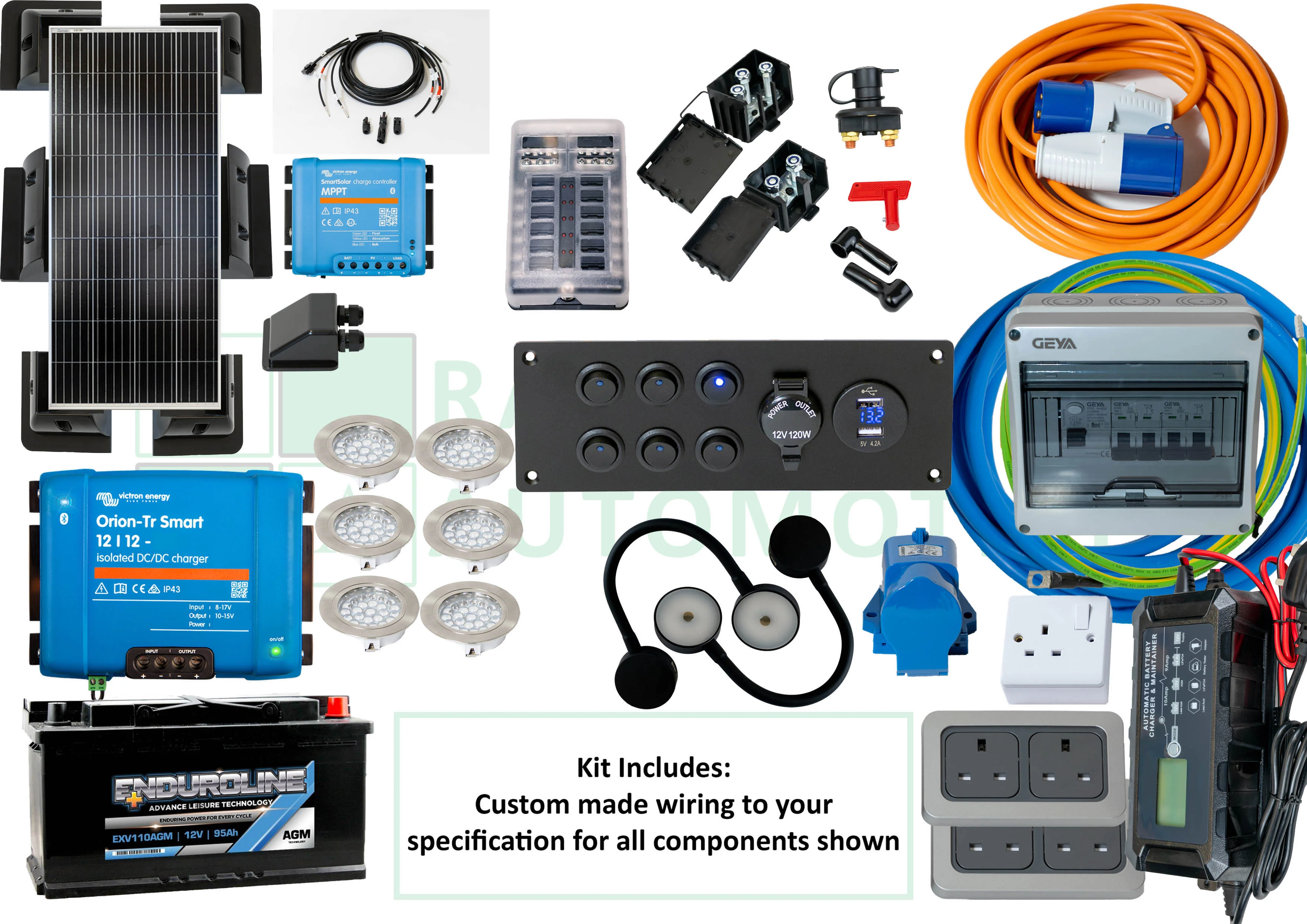

What's Included:

Component	Description
Custom 12V wiring looms x 1	Custom made wiring looms for appliances
Victron Orion 18A x 1	Charge from your alternator whilst driving
6-switch control panel x 1	Control switched 12V appliances
12-way fuse box x 1	Provides 12V fuse protection with common negative too
Bus bars and isolator switch x 1	Gives more battery connection points for a neater install
2-way consumer unit x 1	Provides mains protection and circuit breakers
Covered Mains Inlet x 1	Plug-in point
Double C-line socket and surround x 2	Power outlets
10M Mains hook up lead x 1	Plugin between van and site
10A Mains battery charger x 1	Charge your leisure battery whilst hooked up
Black Dimmable LED reading light with USB x 2	Touch Dim/on/off with flexible neck
LED light (Warm White) x 6	Round LED down lights
95Ah AGM leisure battery x 1	Simple Energy store, provides power when off campsites
15A MPPT x 1	Victron Smartsolar MPPT, converts solar power to battery charge
185W Rigid Solar panel x 1	Charge your leisure battery from the sun
MPPT wiring kit x 1	Cables to join your Solar panel to your MPPT controller

Component Dimensions:

Component	Dimensions (LxWxH)
Victron Orion 18A	125mm x 190mm x 70mm
6-switch control panel	215mm x 80mm x 100mm
12-way fuse box	140mm x 95mm x 40mm
2-way consumer unit	175mm x 185mm x 100mm
LED light (Warm White)	65mm diameter
95Ah AGM leisure battery	354mm x 175mm x 190mm
15A MPPT	95mm x 110mm x 40mm
185W Victron Rigid Solar panel	1485mm x 668mm x 30mm

Technical Notes:

Optional upgrades are available for tailored configurations, please contact us to find out more.

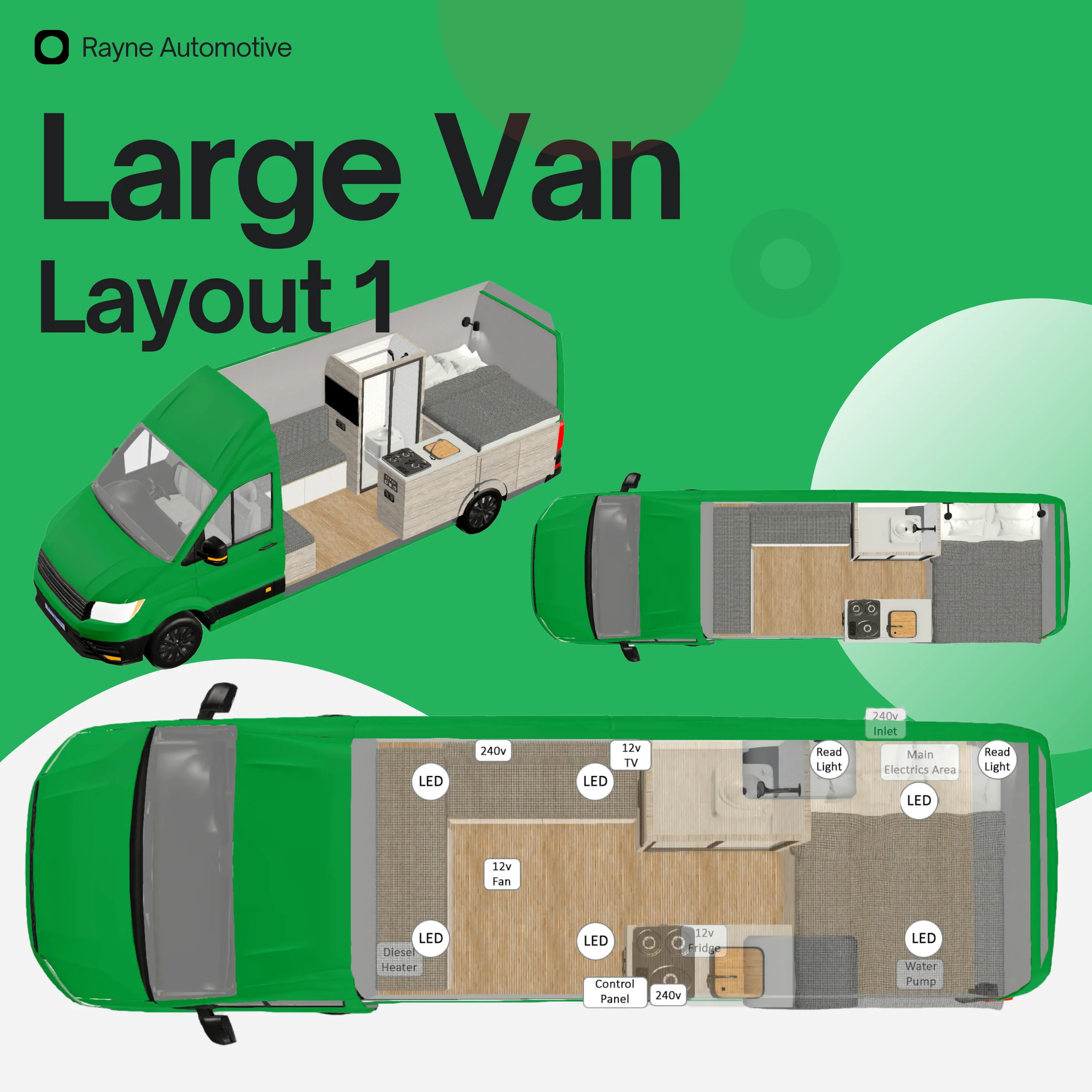

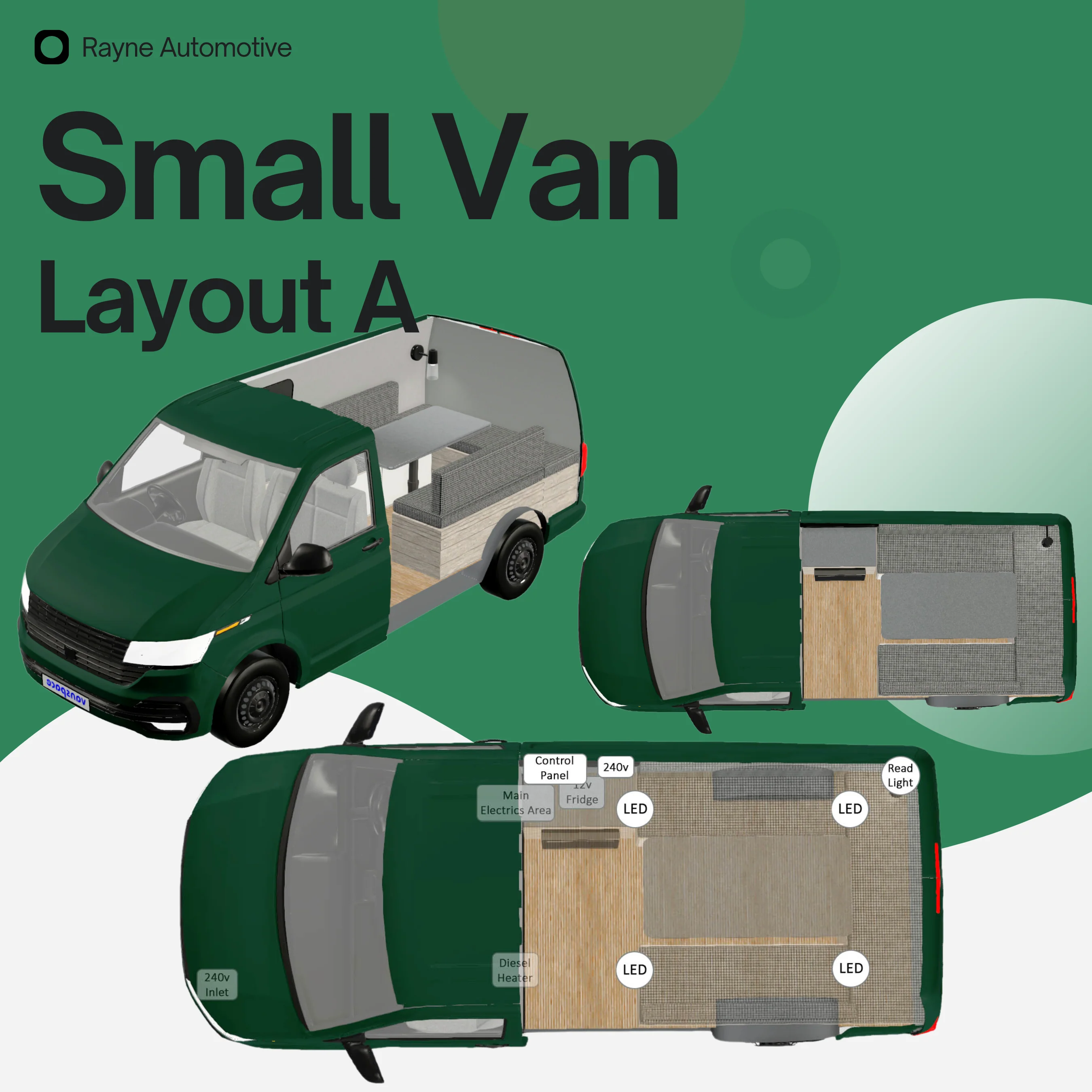

Tailored for Your Chosen Layout:
Choose from one of the pre-configured layouts in the images above, or if you'd prefer, please select ""other"" and our team will reach out to you to discuss your preferred layout before we start making anything (some changes may incur additional charges).

* Solar Yields are based on our data from London based systems. Summer yields are averages per W from March-September, Winter yields are averages per W and are taken from November to January

** Battery power is calculated based on the acceptable depth of discharge for this battery. The calculation is then Battery capacity divided by Daily discharge (67.7Ah for electric cooking and 28.6Ah for gas cooking) minus estimated solar contributions.
